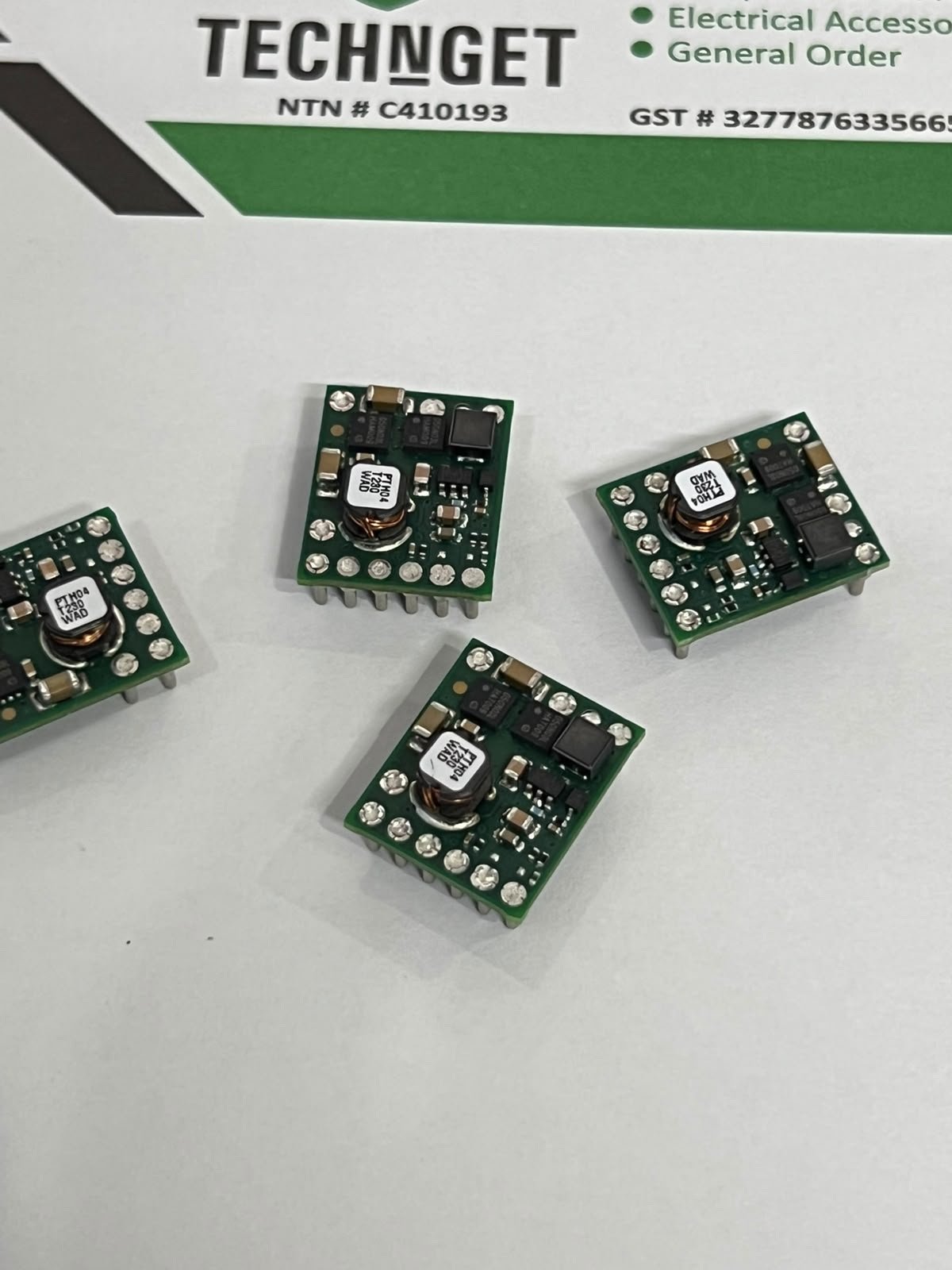

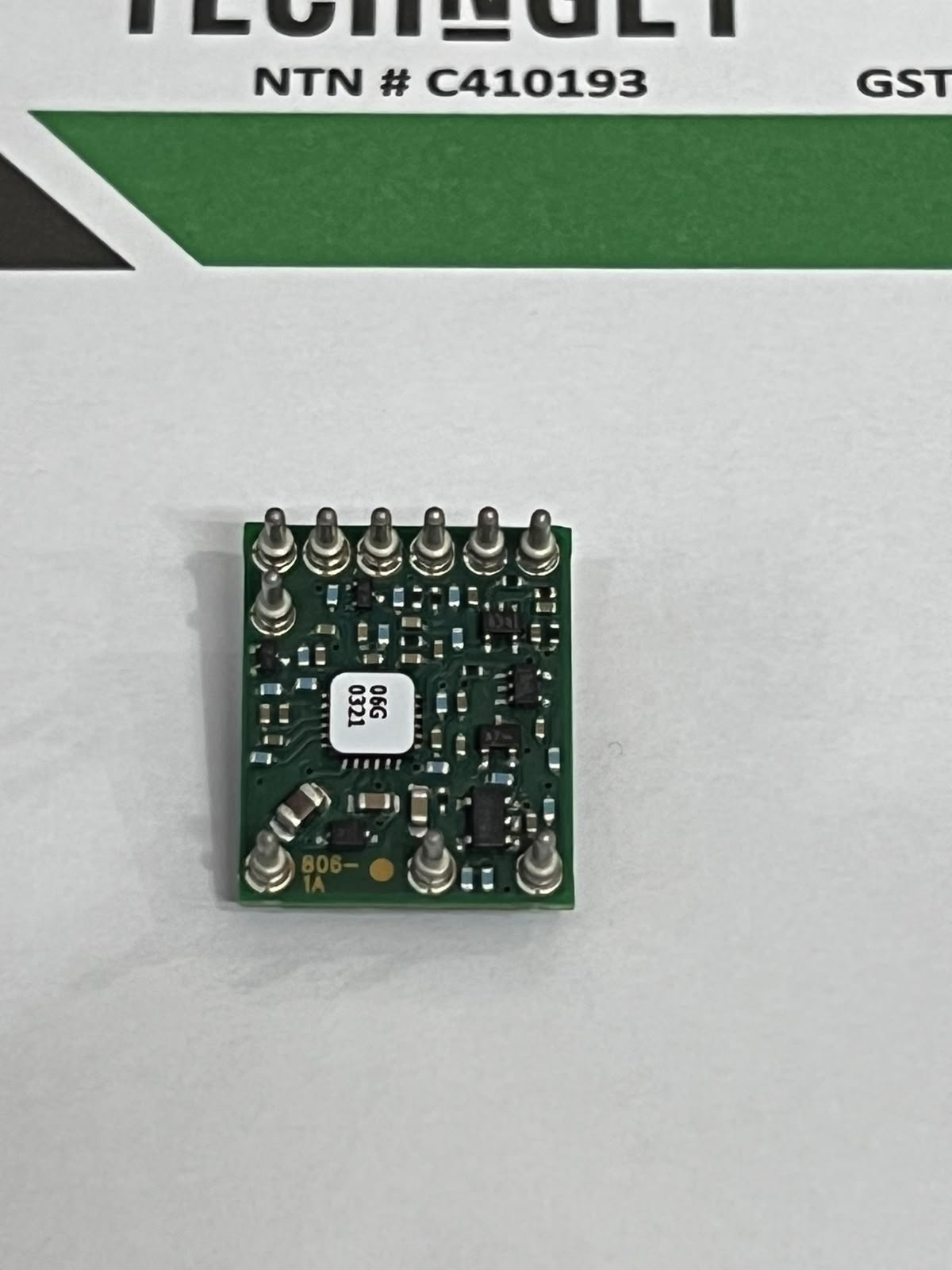

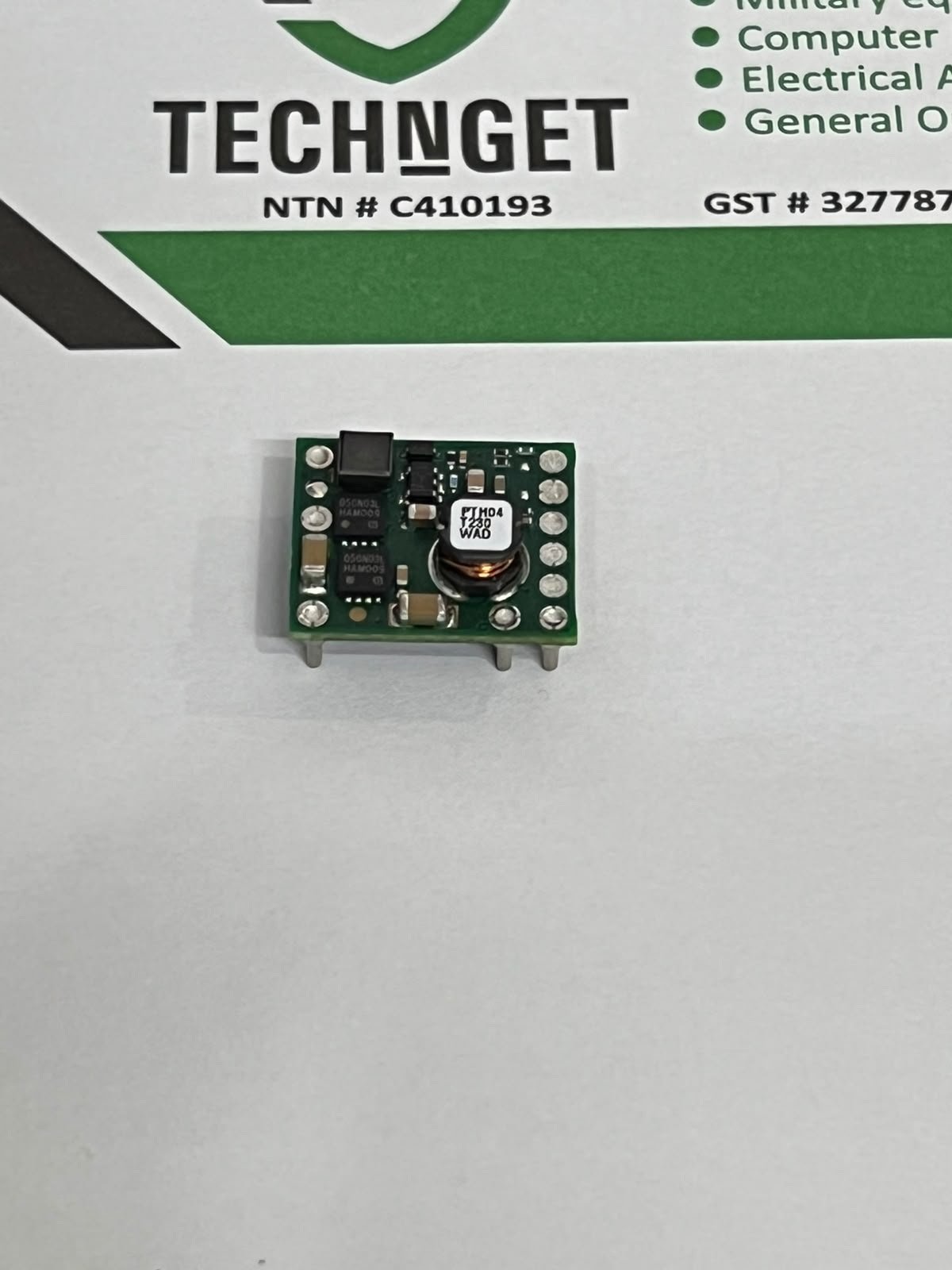

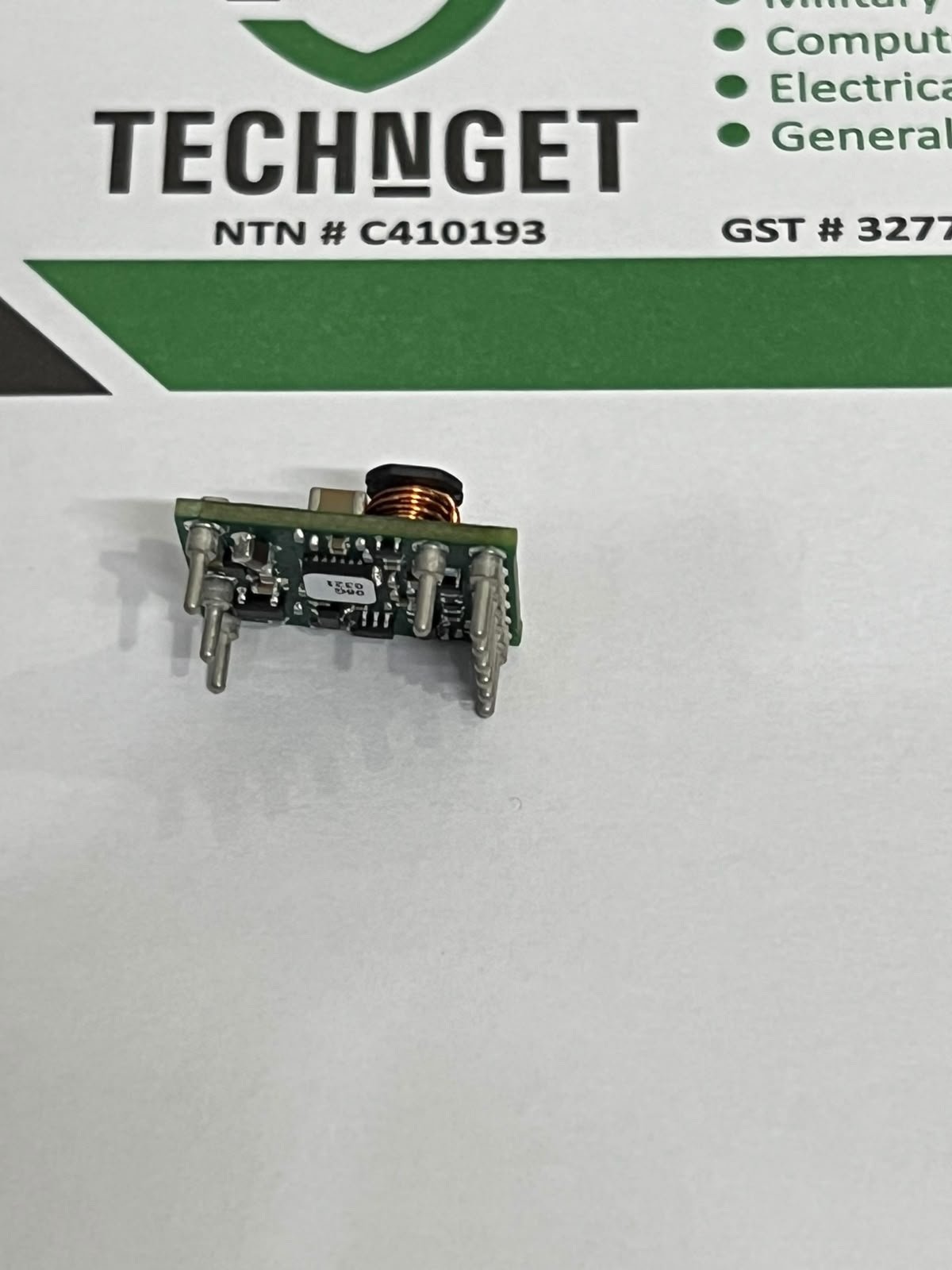

PTH04T230WAD DC-DC Power Module

The PTH04T230WAD is a DC-DC power conversion module designed to provide regulated power for electronic systems. It supports efficient voltage conversion and stable power delivery for circuit boards, embedded systems, and industrial electronics. Suitable for power supply integration, equipment maintenance, and replacement applications.

Long Description:

The PTH04T230WAD is an adjustable, non-isolated DC-DC power module manufactured by Texas Instruments. It converts a low-voltage DC input into a regulated output, making it suitable for electronic systems that require reliable and adjustable power delivery.

The module supports an input voltage range of 2.2V to 5.5V and an adjustable output voltage range of 0.69V to 3.6V, with an output current capability of up to 6A. Its integrated design simplifies power supply implementation in electronic equipment and circuit assemblies.

This power module is suitable for microprocessor power supplies, embedded electronics, bus drivers, industrial control systems, and multi-voltage applications. Protection and control features help support reliable operation under specified conditions.

Key Features:

• Manufacturer: Texas Instruments

• Part Number: PTH04T230WAD

• Component Type: Adjustable DC-DC Power Module

• Input Voltage: 2.2V–5.5V DC

• Adjustable Output Voltage: 0.69V–3.6V DC

• Maximum Output Current: 6A

• Non-isolated power conversion

• Efficiency: Up to 96%, depending on operating conditions

• Package: 10-pin through-hole module

• Operating Temperature: -40°C to +85°C

• Overcurrent protection with automatic reset

• Applications include microprocessors, embedded systems, and regulated power supplies

Technget supports sourcing DC-DC power modules and specialized electronic components for circuit development, industrial equipment maintenance, and replacement requirements. Contact us for PTH04T230WAD availability and bulk orders in Karachi, Lahore, and across Pakistan.
