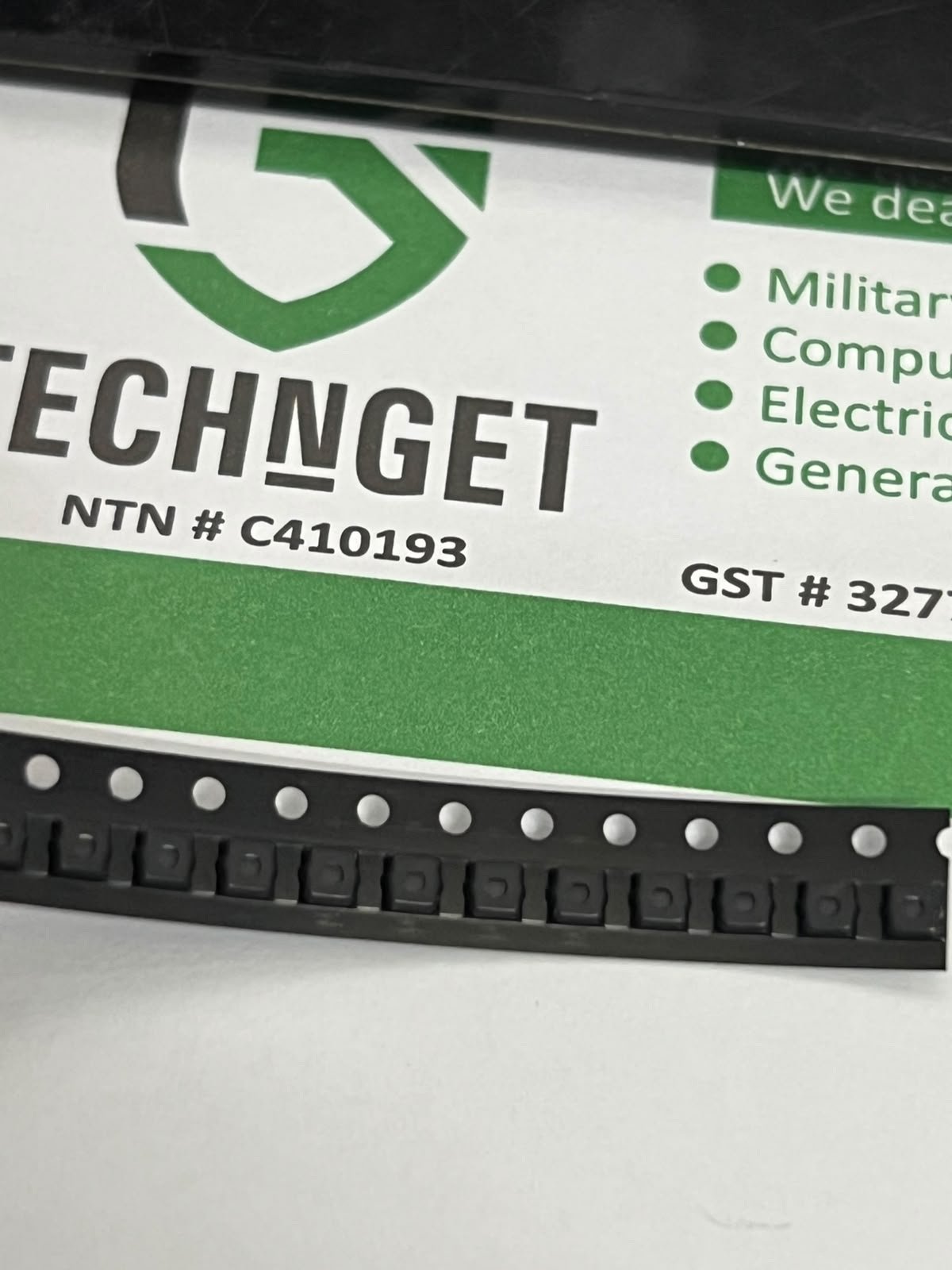

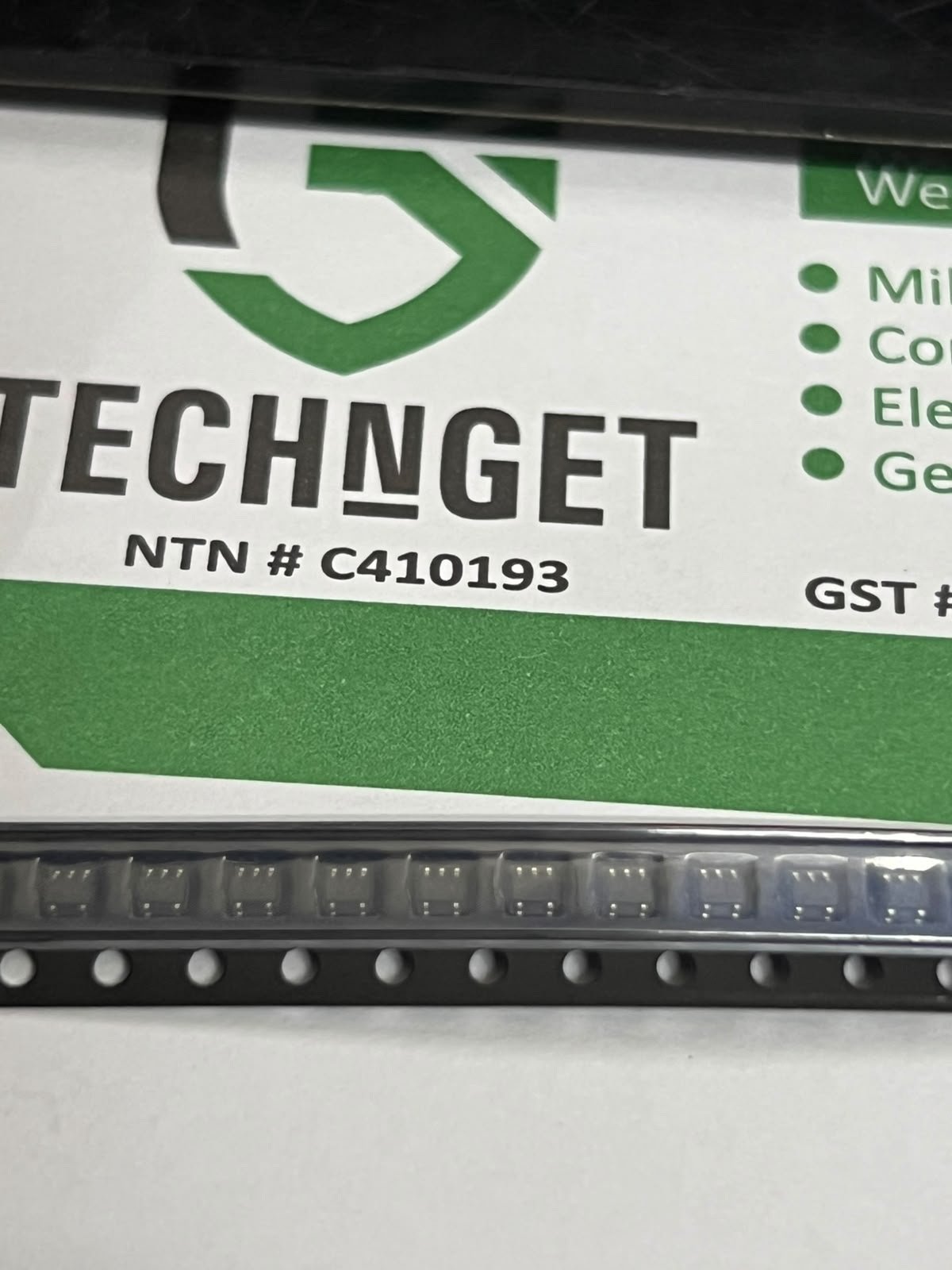

MC74VHC1G08DFT2G Single 2-Input AND Gate IC

The MC74VHC1G08DFT2G is part of the 74VHC high-speed CMOS logic family. It performs an AND logic operation, producing a HIGH output only when both inputs are HIGH. This makes it useful for digital signal processing, logic control, and combining control signals in electronic circuits.

Operating with a supply voltage of 2V to 5.5V, the IC is designed for low-power, high-speed digital applications. Its compact SC-88A package supports surface-mount PCB assembly and integration into modern electronic devices.

The device also features input overvoltage tolerance within specified limits and partial power-down protection, helping support applications involving different logic voltage levels.

Key Features:

• Manufacturer: onsemi

• Part Number: MC74VHC1G08DFT2G

• Component Type: Digital Logic Gate IC

• Logic Function: Single 2-Input AND Gate

• Logic Family: 74VHC CMOS

• Supply Voltage: 2V–5.5V

• Typical Propagation Delay: 3.5ns at 5V under specified conditions

• Package: SC-88A / SC-70-5 / SOT-353

• Mounting Type: Surface Mount (SMD)

• Low Power Consumption

• Partial Power-Down Protection

• Applications: Digital logic circuits, signal control, embedded systems, and electronic equipment

Looking for the MC74VHC1G08DFT2G logic gate IC in Pakistan? Technget supports sourcing of SMD integrated circuits and specialized electronic components for PCB manufacturing, equipment repair, and bulk procurement in Karachi, Lahore, and across Pakistan.
