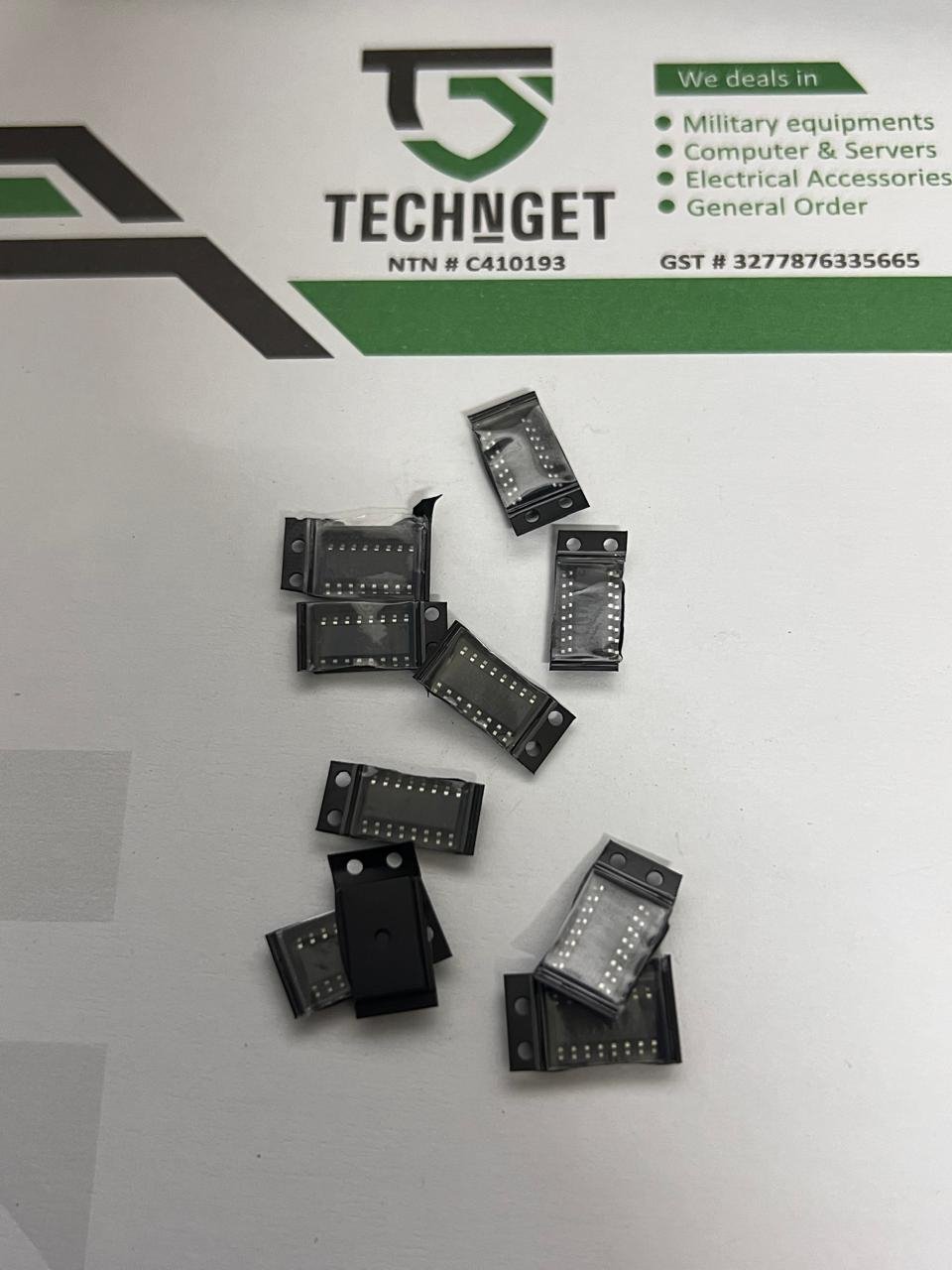

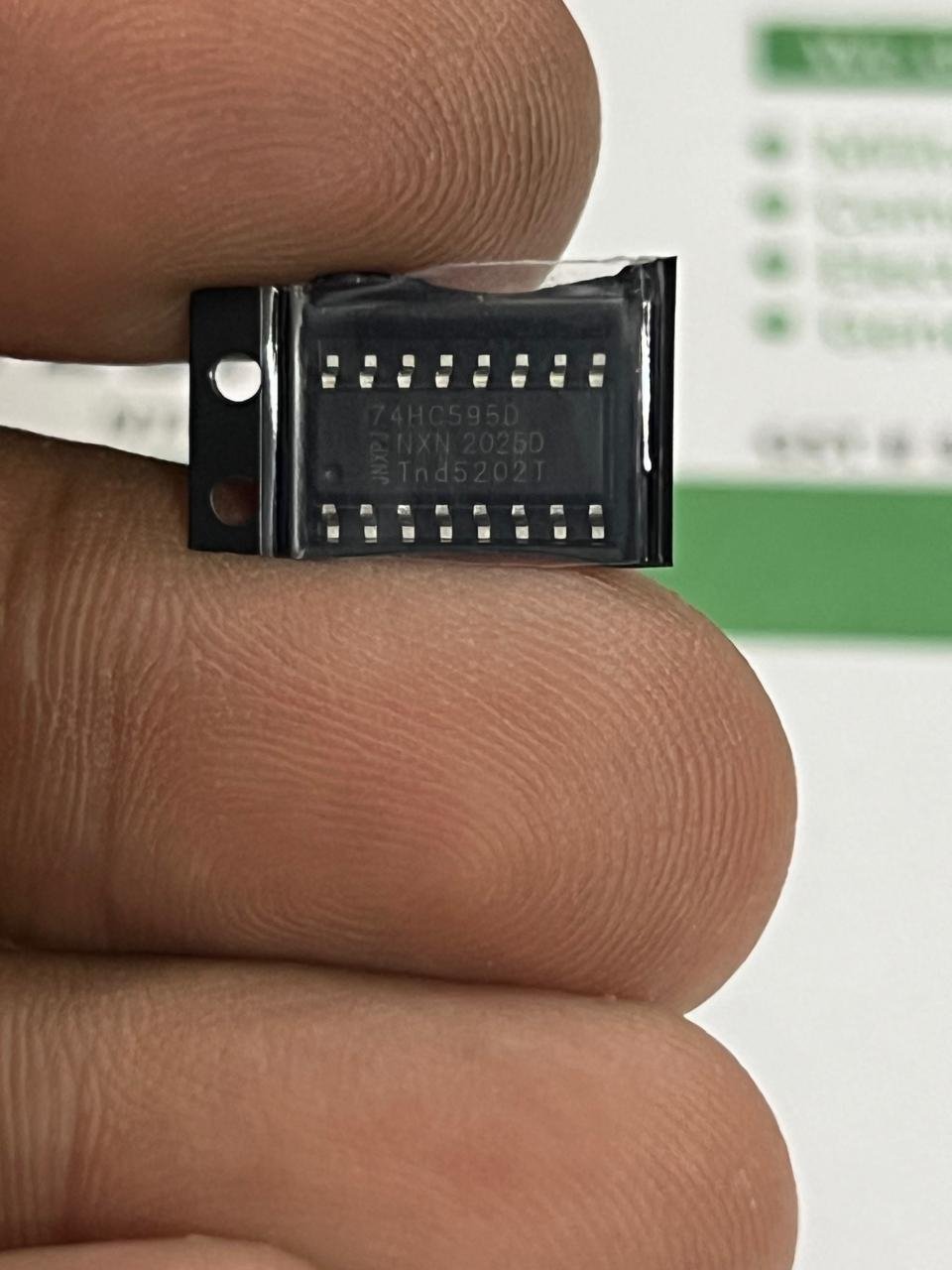

74HC595D SMD IC – 8-Bit Serial-In, Parallel-Out Shift Register

The 74HC595D is a high-speed CMOS logic IC commonly used to control multiple digital outputs using a serial data interface. It features an internal shift register and a storage register, allowing data to be shifted in and transferred to the output pins when the appropriate latch signal is applied.

This IC is frequently used with microcontrollers such as Arduino-compatible boards and other embedded platforms to control LEDs, displays, relays through suitable driver circuits, and other digital output devices. The exact supply voltage range and package dimensions should be confirmed against the specific manufacturer's datasheet.

Key Features:

• Part Number: 74HC595D

• Component Type: 8-bit shift register IC

• Logic Family: 74HC CMOS

• Data Input: Serial

• Data Output: 8 parallel outputs

• Additional Output: Serial data output for cascading

• Mounting Type: Surface mount (SMD)

• Package: Commonly SO-16; confirm manufacturer variant

• Applications: LED control, display driving, digital output expansion, and embedded electronics

• Compatibility: Suitable for microcontroller-based digital systems when voltage levels are compatible

Technget supplies SMD ICs, logic components, and hard-to-find electronic parts across Pakistan, including Karachi and Lahore. Contact us for stock availability, bulk orders, and sourcing support for industrial and commercial electronics.
